Evaporator Coil Cleaning

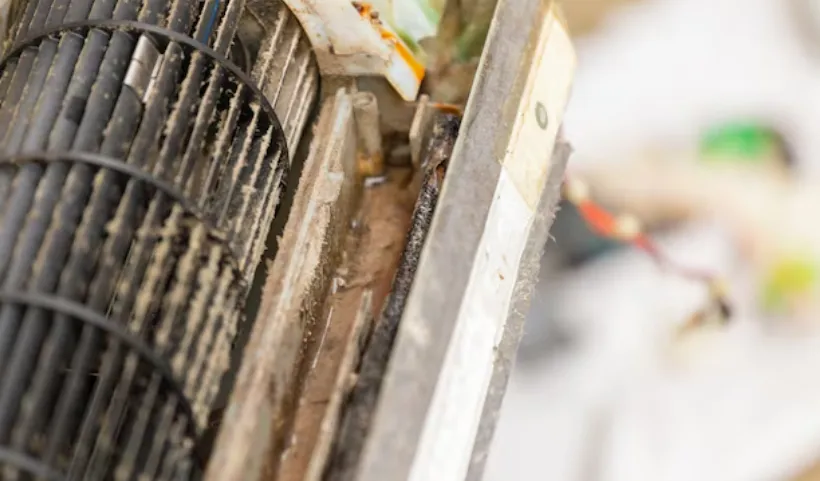

Two things happen at once. Airflow through the fin pack drops, which raises static pressure and reduces the amount of air being cooled. And the insulating layer of dirt on the fins reduces heat transfer, so the refrigerant absorbs less heat from the air that does get through. The result is lower capacity and longer runtimes, and in August runtime is the entire electric bill.

It also pushes the system toward the failure modes that cost real money. Reduced airflow drops evaporator temperature and pressure, which is how coils ice up — and an iced coil floods liquid refrigerant back to the compressor. Meanwhile the blower runs hotter against elevated static pressure, and the condensate that used to run off clean fins now carries debris into a pan that eventually plugs.

And it affects the air itself. A coil that stays wet and dirty is the most common source of the musty smell people notice when the system starts, because biological growth on a damp fin pack sits directly in the path of everything you breathe.

Access first, and this is where the job is won or lost. Many Valley coils are in attic cabinets or upflow furnace plenums where only the leading face is visible, and dirt loads through the depth of the fin pack. A real cleaning means opening the cabinet properly, sometimes pulling the coil, and cleaning both sides — not spraying the face through an access panel and calling it done.

Then the method: the correct coil cleaner for the direction and severity of the loading, dwell time so it actually works rather than a rinse-and-run, gentle rinsing that does not bend fins or flood the cabinet, fin combing where fins have been damaged, and full cleaning of the drain pan and the condensate line and trap. A cleaning that leaves the debris in the pan just plugs the drain a month later.

Then verification, which is the part that proves it worked. We measure static pressure and temperature split before and after, and record them. If the numbers do not improve, the restriction is somewhere else — the filter, the ducts, or the blower wheel — and you should know that rather than pay for a cleaning that did not change anything.

Filtration is the whole answer. A filter that is undersized for the slot lets air bypass around the frame and deposit directly on the coil, which is the single most common cause of a fouled coil in Valley homes — and the tell is dust built up on the filter frame instead of the media. A filter left in for a full cooling season does the same thing once it is loaded and starts leaking around its own edges.

Duct leakage is the second cause. Return-side leaks in a hot attic pull in attic dust and insulation fibers downstream of the filter, which lands straight on the coil. No filter upgrade fixes that; sealing the return does.

The routine that keeps a coil clean: a correctly sized filter changed monthly through cooling season, MERV 8 to 11 unless static pressure says otherwise, and an annual inspection of the coil face during the spring maintenance visit. Coils cleaned on a schedule are a straightforward job; coils cleaned after ten years of neglect sometimes have to be pulled.
