HVAC Air Filters

Filters are sold in nominal sizes — 16x25x1, 20x25x1, 24x24x1 — and the actual filter is slightly smaller than the number printed on it. That is normal and intended. What is not normal is a filter that is a half-inch or more undersized for the slot, which is extremely common in Valley homes where somebody grabbed the closest size at a hardware store.

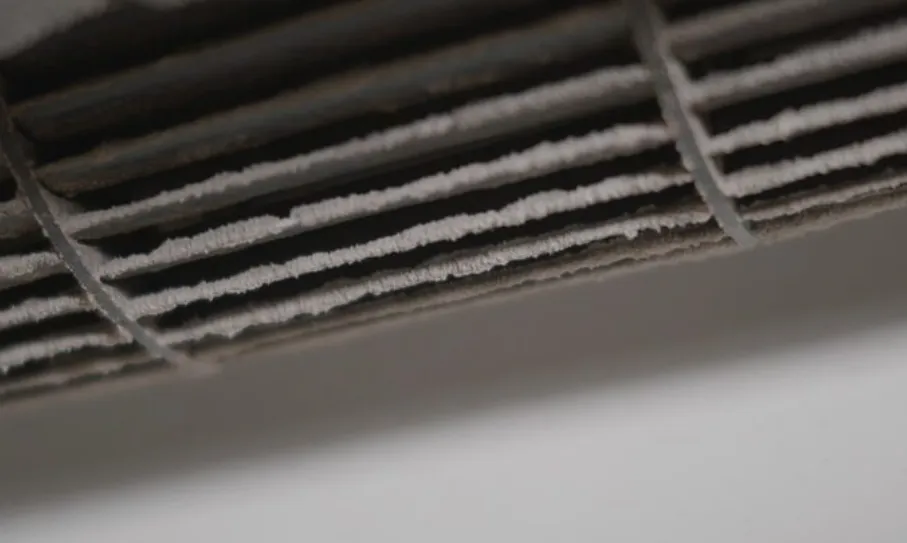

Air takes the path of least resistance. A gap around the filter frame means a meaningful share of your return air bypasses the filter completely, going straight to the blower and the coil unfiltered. You can see the evidence: grey fuzz built up on the outside of the filter frame or the grille rather than on the filter face itself.

Find your size by reading the frame of the filter currently installed, then verify it actually fits the slot without slop. If you are unsure, send us a photo of the existing filter and the slot along with your equipment model number and we will confirm it. Depth matters as much as width and height — a 1-inch filter in a 4-inch cabinet will tilt and bypass.

MERV measures how much of what size particle a filter captures. MERV 8 handles ordinary household dust, pollen, and lint at a low pressure drop. MERV 11 adds meaningful capture of finer particles including pet dander and some mold spores. MERV 13 reaches into bacteria, smoke, and fine wildfire particulate. MERV 16 is a specialty rating for equipment specifically designed around it.

Every step up costs airflow. A residential system is designed around a total external static pressure — often 0.5 inches of water column — and the filter is one of the biggest single restrictions in the path. Put a MERV 13 filter in a system that was already at its static limit with a MERV 8 and you get longer runtimes, lower airflow per ton, a colder coil that can ice in the wrong conditions, and a blower motor working harder for less air.

For most Valley homes with 1-inch filter slots, MERV 8 to MERV 11 is the honest recommendation. If you have a genuine allergy, asthma, or immune reason to want MERV 13 or higher, the right move is a deeper 4-inch or 5-inch media cabinet, which delivers high capture with far more surface area and far less pressure drop than cramming the same rating into a 1-inch panel. We measure static pressure before recommending an upgrade rather than selling the biggest number on the shelf.

Fiberglass panel filters are the blue or green mesh ones. They exist to keep large debris out of the blower, not to clean your air, and in a dusty climate they let almost everything through. We do not recommend them for Valley homes except as a temporary stopgap.

Pleated disposable filters are the default right answer for most homes: real capture, reasonable pressure drop at MERV 8 to 11, widely available in every size, inexpensive. Deep media filters — 4-inch to 6-inch cartridges in a dedicated cabinet like an Aprilaire or Honeywell housing — are the upgrade worth making, because the extra surface area means high capture with less restriction and a three-to-six-month change interval instead of monthly.

Washable and electrostatic reusable filters sound economical and usually underperform, especially once the media holds any dust. Whole-home HEPA requires a dedicated bypass configuration and is a specialty install rather than a filter you drop in a slot. Activated carbon filters add odor adsorption but not much particulate capture, so they are a supplement rather than a replacement.

For 1-inch pleated filters during cooling season — roughly May through September in the Phoenix area — monthly is the correct interval, not the 90 days printed on the package. That number assumes a system that runs a few hundred hours a year, and yours runs many times that. Outside peak season, every two to three months is reasonable.

Deep 4-inch and 5-inch media filters typically run three to six months. Homes with dogs, cats, indoor smoking, active remodeling nearby, or a location downwind of new construction in Queen Creek, San Tan Valley, or north Mesa should shorten every one of these intervals.

The reliable habit is to look, not to count. Pull the filter and hold it up to a light once a month during summer. If you cannot see light through the media, it is overdue regardless of the date. A restricted filter is one of the most common causes of both weak cooling in July and a furnace tripping its high limit in December.
